230 Volt watermaker

Desalinator AC 65
Desalinator AC 65

Watermaker
55 l/h up to 135 l/h capacity.

Desalination plants for operation on small generators and inverters.

Equipped with up to 2 membranes depending on capacity, standard size type seawater 2540 worldwide available.

Modular design allows optimally adapted installation where space is limited.

Including separate high-efficiency feed pump for optimum pre-filter service life.

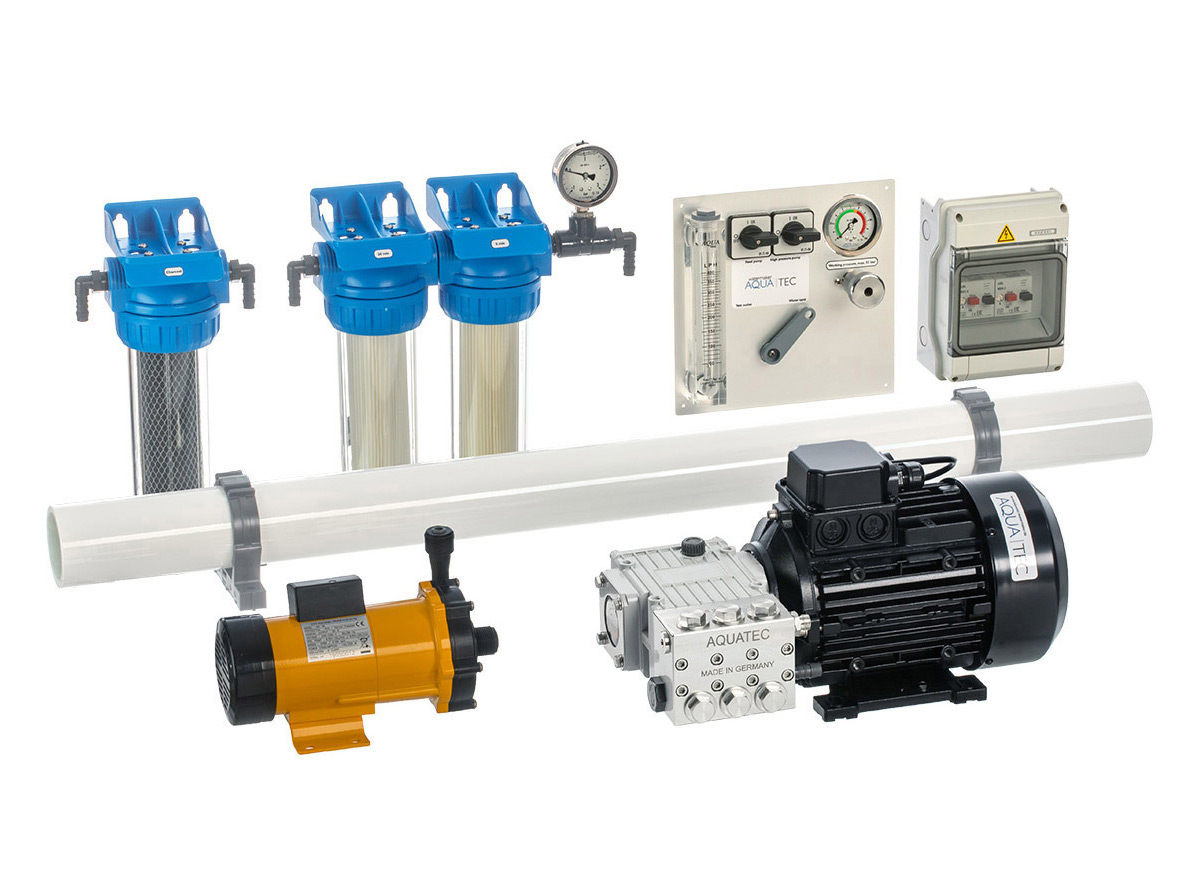

Delivery incl. all components for easy installation. Control panel and e-connection box already pre-wired.

Board outlets, sea valve and connection cable are to be provided on board.



Watermaker / desalinators of model series AC 55 to AC 135, proven for years. Optimal for a crew of approx. 2 persons. Driven by a 230V 50Hz AC motor. The direct drive ensures smooth and maintenance-free operation.

The low power consumption of the Watermaker AC 55, AC 65 and AC 110 allows the use on small generators. With active generous charging technology, operation by means of an inverter is also possible. Here we recommend a good inverter with 3 KW continuous power.

AC 75 and AC 135 models require a generator with min. 3.5 KW continuous power. If a generator with min. 4 KW continuous power is installed on board, we recommend a watermaker of our model series Modular AC 150 to AC 240 or Compact KC 150 to KC 240.

After customer experience and also own experience the desire for a larger Watermaker, already after short habituation to the luxury of chlorine-free and good fresh water is very frequent. The advantages of having a watermaker on board are many, especially in southern countries, and are often considered a necessity by many yachties.

learn more about watermaker...

Any further questions or placing your order please feel free to contact us by phone or e- mail.
As manufacturer and technician, you will get answers to all questions about watermaker from us.



Technical data and prices AC 55 - AC 135
Modell
ltr./h
Generator power 50Hz
Volt/ amps
Membrane
Price excl. VAT
Price incl. 19% German VAT
AC 55 modular
55
min. 1.8 KW continuous power
230 V 3.2 amps
1 x SW 2540
€ 5.024,37
€ 5.979,-
AC 65 modular
65
min. 2.2 KW continuous power
230 V 5.8 amps
1 x SW 2540
€ 5.024,37
€ 5.979,-
AC 110 modular
110
min. 2.2 KW continuous power
230 V 5.8 amps
2 x SW 2540
€ 5.873,11
€ 6.989,-
AC 75 modular
75
min. 3,5 KW continuous power
230 V 7.9 amps
1 x SW 2540
€ 5.116,81
€ 6.089,-
AC 135 modular
135
min. 3,5 KW continuous power
230 V 7.9 amps
2 x SW 2540
€ 5.880,67
€ 6.998,-

Capacity given at +/- 10% for standard seawater at 25° Celsius and 35 g/l salinity at 55bar working-pressure (atlantics).
